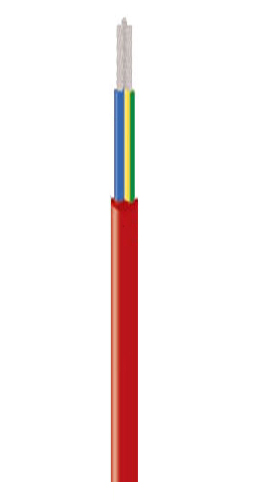

SIHF Multicore silicone rubber insulated and sheathed
SIHF/P Multicore silicone rubber insulated and sheathed, with a galvanized steel wire braid overall
SIHG-GL/P Multicore silicone rubber insulated and sheathed, with a glass fibre tape and a galvanized steel wire braid overall

Application

Silicone cables are employed where insulations are subjected to extreme changes in temperature . They are heat resistant up to 180 Deg C , intermittently 220 Deg C .Due to good resistance in all weather conditions these cables can also be employed at temperatures as low as - 60 Deg C .
Upon and after combustion a residue of pure silica is produced and the cables continue to function . However, it is usual to provide a glass braid around the cable to prevent a break down of the silica during and after a fire . Silicone cables are halogen free and are most suitable for power plants . They have become indispensable in a wide range of industrial sectors , in foundries , steel and hot rolling mills, cooking equipment , cement , glass and ceramic factories, ship and aircraft construction , and oil burners.

Specification

• Conductors: Flexible class 5 tinned copper conductors to BS 6360
• Insulation: Silicone rubber
• Sheath: Silicone rubber
• SIHF : Minimum bending radius flexing 7.5 x o/dia fixed 4 x o/dia
• SIHF-P: Galvanized steel wire braid
• Minimum bending radius flexing 10 x o/dia                  fixed 5 x o/dia
• Voltage rating 300 / 500V
• Temperature rating
• Fixed:   - 60 deg C to+ 180 deg C
• Flexing: -25 deg C to+ 180 deg C
• Available in Brick Red as standard.
• White or Black on request.
