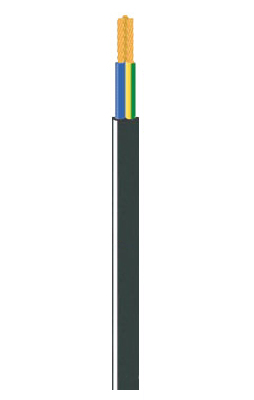

Vulcanized rubber insulated and tough rubber sheathed multicore to BS 6500 . 300 / 500V
Application
A mains supply or extension lead for domestic or industrial purposes, under conditions of frequent handling, trailing or flexing.
Specification
- Conductors: Flexible class 5 tinned copper conductors to BS 6360
- Insulation: Rubber insulation type E1.4 to BS 7655
- Core identification:
2 core Brown, Blue
3 core Brown, Blue, Green / Yellow
4 core Brown, Grey, Green / Yellow, Black
5 core Brown, Blue, Green / Yellow, Black, Grey - Sheath : Tough rubber type EM2 to BS 7655
- Voltage : 300 / 500V
- Temperature rating 60 Deg C max conductor temperature
- Minimum flexing - 50 Deg C
- Harmonized code HO5 RR-F
| REF NUMBER | NOMINAL AREA MM | STRANDING MM | NOMINAL O/DIAMM | WEIGHT KG / KM |
|---|---|---|---|---|
| 3182 | 0.75 | 24/0.20 | 6.6 | 61 |
| 1 | 32/0.20 | 7.3 | 74 | |
| 1.5 | 30/0.25 | 8.9 | 109 | |
| 2.5 | 50/0.25 | 10.5 | 155 | |
| 3183 | 0.75 | 24/0.20 | 7.4 | 75 |
| 1 | 32/0.20 | 7.8 | 87 | |
| 1.5 | 30/0.25 | 9.6 | 130 | |
| 2.5 | 50/0.25 | 11.2 | 187 | |
| 3184 | 0.75 | 24/0.20 | 7.9 | 90 |
| 1 | 32/0.20 | 8.6 | 106 | |
| 1.5 | 30/0.25 | 10.6 | 163 | |
| 2.5 | 50/0.25 | 12.7 | 236 | |
| 3185 | 0.75 | 24/0.20 | 8.8 | 112 |
| 1 | 32/0.20 | 9.5 | 131 | |
| 1.5 | 30/0.25 | 11.5 | 197 | |
| 2.5 | 50/0.25 | 13.7 | 280 |
